River Gravel Wheel Sand Washing Machine 30-50 T/H Connevient Operation

Introduction

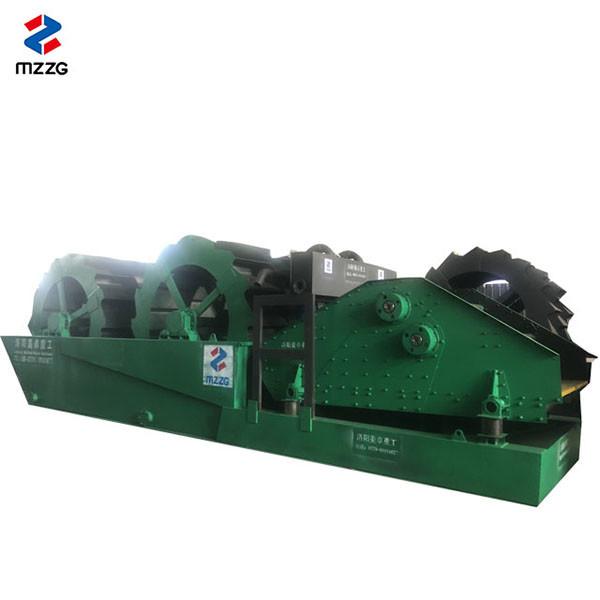

Double wheel sand washer is a new type washer with multifunctional, generally used for cleaning, dewatering, and recycling the stone powder, mountain sand and other high mud content materials. This equipment connects double wheel washer into one set, also includes the high frequency dewatering screen part and fines sand recycle unit. The whole machine is integrated, within reasonable structure, compact connection, less space occupation and smaller power consumption. Final sand output within 95% formation, high grade of coarse and fine.

Structure

Working principle

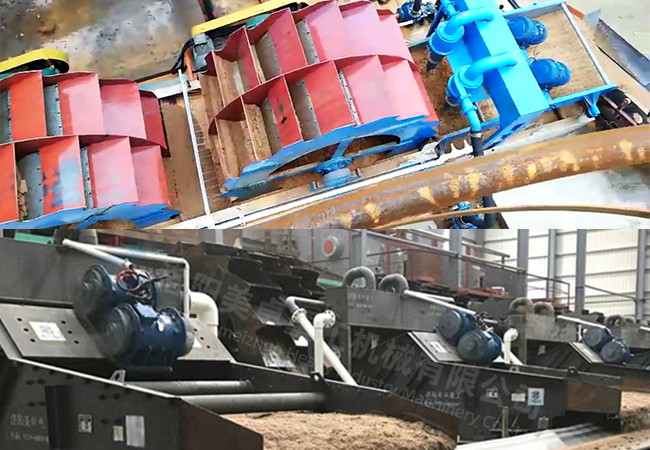

When the equipment is running, the material that has been treated in the previous stage enters the first water storage tank. The first grinding wheel starts to rotate through the motor and the speed reducer, and the material in the first water storage tank is picked up from the water and passed through the washing wheel. The mesh leaks the water and the material below the mesh size, and transfers the qualified material to the second storage tank. During the rotation of the grinding wheel, the material is in full contact with the water, and the water is used to remove the impurities on the surface of the material. Make the material cleaner.
Then the second washing wheel repeats the process of the first washing wheel to clean the material twice. The cleaned material enters the dewatering device, and the large amount of water is removed by the vibration of the dewatering device, so that the material is more convenient to store and transport. For the material leaked in the water storage tank, the water pump enters the water pump at the end of the machine, and is pumped to the separation and recovery device for concentration and recovery. After concentration, the qualified materials are returned to the dewatering device for dehydration and collection, and the excess wastewater Impurities are discharged into the return tank.

Tech specifications

Features

1. The sand was washed twice, get cleaner sand output .
2. Full-featured, efficient sand cleaning, dewatering and fine sand recovery.
3. Integrated design, high-yield and high-efficiency, compact structure and low energy consumption.
