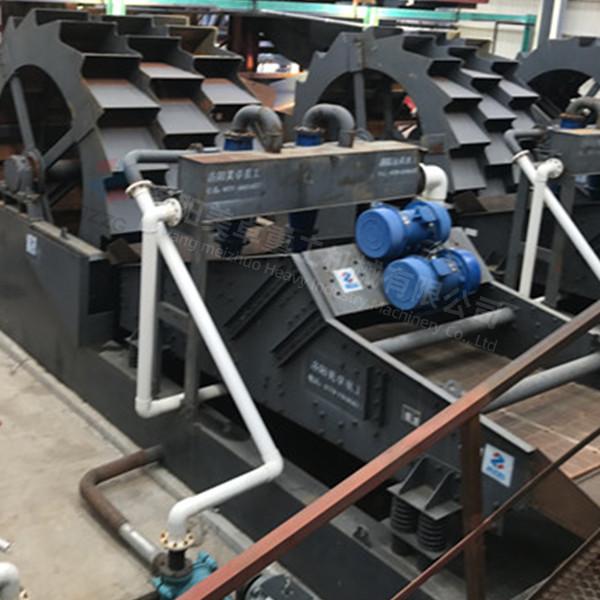

Single Wheel Sand Washing Unit , Gravel Washing Machine With 40mm PU Screen Plate
Product Description
Single wheel gravel sand washing machine has the functions of sand washing and fine sand recovery, it can extract the fine sand in the muddy water after sand washing, thereby obtaining 0-5mm sand, final coarse and fine sand grade is reasonable. Sand washing wheel has a simple structure and is easy to operate and maintain. The equipment is divided into two parts: the wheel washing machine and the fine sand recycling. According to the customer's requirements, the double-row wheel or the three-row wheel can be customized. The fine sand recovery part is determined by the amount slurry water and sand concentration in the water mixture, so that we can properly configure the model and quantity of the cyclone, the slurry pump, and the dewatering screen.
Structure
Working principle
Materials below 5mm enter the feed end of the wheel sand washing
machine with water. The sand washing wheel stirs the sand and picks
it up. The screen of the sand washing machine is 3mm, and then it
is sent to the dewatering screen. The spray pipe cleans the sand
twice. At the same time, under the action of the dewatering screen,
the clean finished sand is dehydrated and desilted and sent from
the screen outlet to the conveyor belt.
The tail water from the overflow of the sand washer is discharged
into the water tank below the sieve through the pipeline. The
slurry pump draws the tail water and drives it into the cyclone to
recover the fine sand. The fine sand is discharged into the linear
dewatering screen of the all-in-one machine, and the coarse sand
discharged from the sand washing machine is evenly mixed and
washed, and then dewatered and discharged to the conveyor belt.
Tech specifications
| Model | Capacity (t/h) | Water Consumption (m³/h) | Wheel diameter (mm) | Cyclone model (mm) | Power (kw) | Input size(mm) | Screen size (Width*Length) (mm) |
| MZ2612 | 30-50 | 50-100 | φ2600*1100 | 250/300/350 | 24.4 | ≤10 | 1200*2400 |
| MZ2615 | 50-70 | 100-130 | φ2600*1100 | 550/650/750 | 33.5 | ≤10 | 1500*3000 |
| MZ3015 | 50-100 | 130-160 | φ3000*1600 | 550/650/750 | 47 | ≤10 | 1500*3000 |
| MZ3018 | 50-120 | 130-180 | φ3000*1800 | 550/650/750 | 52.5 | ≤10 | 1800*4200 |
| MZ3618 | 100-180 | 160-300 | φ3600*2000 | 750/1200/1800 | 83 | ≤10 | 1800*4500 |
| MZ3624 | 100-200 | 160-450 | φ3600*2000 | 750/1200/1800 | 97 | ≤10 | 2400*4500 |
|
|
