Luoyang meizhuo Heavy Industry Machinery Co., Ltd. With new, green and sustainable development as the service concept, we focus on the manufacture of environmentally friendly mining machinery and
6 Years
| Ask Lasest Price | |
| Brand Name : | MZZG |
| Certification : | |
| Supply Ability : | 10 set 15 set per month |
| Price : | Negotiation |
| Delivery Time : | 35 work days |
| Payment Terms : | L/C, T/T |
| Model Number : | XS1630 |
Product details
| After Sale Service | Life-long Service |
| Product name | Dewatering type sand washing machine |
| The Machines classification | Sand Washing Plant Line |
| Processed materials | River Gravel |
| Installation | Engineers Guide |
| Function | Wet sand making line |
| Advantage | High abrasive gear |
| Feeding size | 10mm |
| Keyword | Bucket Wheel Sand Classifier |
| Rotating speed(t/min) | 2.5r/min |
Working principle
Belt pulley and belt are driven by motor and which drives sand
washer wheel work through deceleration. The sand washer wheel and
deceleration are connected by junction box, which drive sand washer
wheels circumrotating. Meanwhile the washed sand will be fed into
PU screen directly for dehydrating. In the process of sand washer's
running, sand is discharged through the feeding groove. Sand washer
can circumrotate and discharge sand periodically by motor's
continuously running, which can realize the batch production. It
works the same as Bucket sand washer. After vibrating and
dehydrating on the PU screen, dry sand is the final product.
Structure
Application

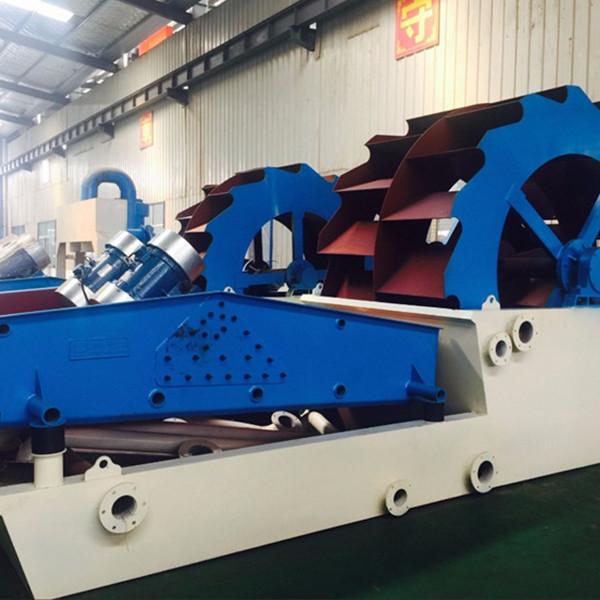

Dewatering type sand washing machine combined the bucket sand
washer and dewatering screen into one equipment, have the function
of cleaning and dewatering sand , and easy to move to another
place. This type sand washer with compact structure, to solve the
problem of high clay and water content during the sand washing
process in sand and tailings factory.
Tech specifications
Features
1. Complete machine installation, easy to transport, easy to move
2. Energy saving and environmental protection, low energy
consumption.
3. Low stoppage rate and long service life.
4. Large output capacity and high efficiency.
|
|
