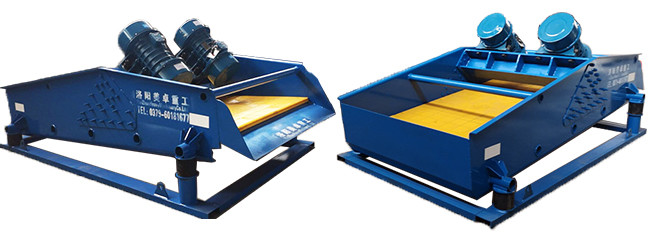

Single Deck Sand Dewatering Screen Straight Motion Trajectory Long Durability
Product description:
The linear dewatering screen is a linear vibrating screen with a
straight motion trajectory. It has the advantages of advanced
structure, sturdy and durable, low noise, and convenient
maintenance. It is suitable for coal preparation, ore dressing,
electric power, chemical industry, light industry and other
departments to perform dry and wet sieving or dewatering, desizing
and desliming of medium and fine-grained materials.
Working principle:
Adopts double motor self-synchronous technology, universal eccentric block, adjustable amplitude vibrator. The utility model is mainly composed of a screen box, a vibration exciter, a supporting system and a motor. The two unconnected vibrators operate synchronously and reversely, the centrifugal force produced by two groups of eccentric masses is superimposed along the direction of vibration, and the reverse centrifugal force is counteracted, thus forming a single vibration along the direction of vibration, so that the screen box moves back and forth in the linear motion.
Tech specification:
| Model | Power (Kw) | Capacity(t/h) | Feed size (mm) | Screen size W*L (mm) | Screen area (m²) | Screen Material | Weight (kg) | Dimension L*W*H (mm) |
| TS0918 | 0.75*2 | 10-30 | ≤10 | 900*1800 | 1.6 | PU | 535 | 1885*1307*1133 |
| TS1224 | 2.2*2 | 40-60 | ≤10 | 1200*2400 | 2.88 | PU | 1080 | 2515*1607*1399 |
| TS1530 | 3*2 | 80-100 | ≤10 | 1500*3000 | 4.5 | PU | 1550 | 3083*1907*1484 |
| TS1840 | 4*2 | 100-140 | ≤10 | 1800*4000 | 7.2 | PU | 3100 | 4116*2381*1900 |
| TS1842 | 4*2 | 100-150 | ≤10 | 1800*4200 | 7.56 | PU | 3200 | 4316*2381*1976 |
| TS1845 | 4*2 | 100-180 | ≤10 | 1800*4500 | 8.1 | PU | 3400 | 4900*2380*2050 |
Parts material:
Performance advantages:
1. The material of the dewatering screen is made of
high-molecular-weight polyurethane, which is impact-resistant,
low-temperature-resistant, wear-resistant, chemical-resistant,
self-lubricating, and absorbs impact energy. Materials such as
vinyl fluoride, nylon, carbon steel.
2. The vibration motor of the dewatering screen is easy to replace.
The base rubber spring is used to dampen the vibration, so that the
amplitude is small, and the slow vibration can be taken off
cleanly.
3. The dewatering screen can be customized according to the output
and water content. The side plate of the fuselage has a reinforcing
plate, with a support at the bottom, a horizontal bar at the
bottom, and a triangular steel plate support at the discharge port.
4. The vibration motor is fixed with high-strength bolts. The
bottom spring is a rubber spring. The quality of the spring will
affect the life of the vibration motor. The sieve plate has a high
fixed density, and ribs are punched in the sieve plate.
5. After welding, the welder will strictly require no welding
holes, and the bottom is supported by channel steel.
6. In addition, the sieve holes can be adjusted according to needs,
the equipment has low noise and good dehydration effect.
7. Before delivery, the staff will debug it, whether the vibration
motor is normal, and whether the exciter is running well to ensure
that the quality of the factory product is guaranteed for the
customer.
|
|
