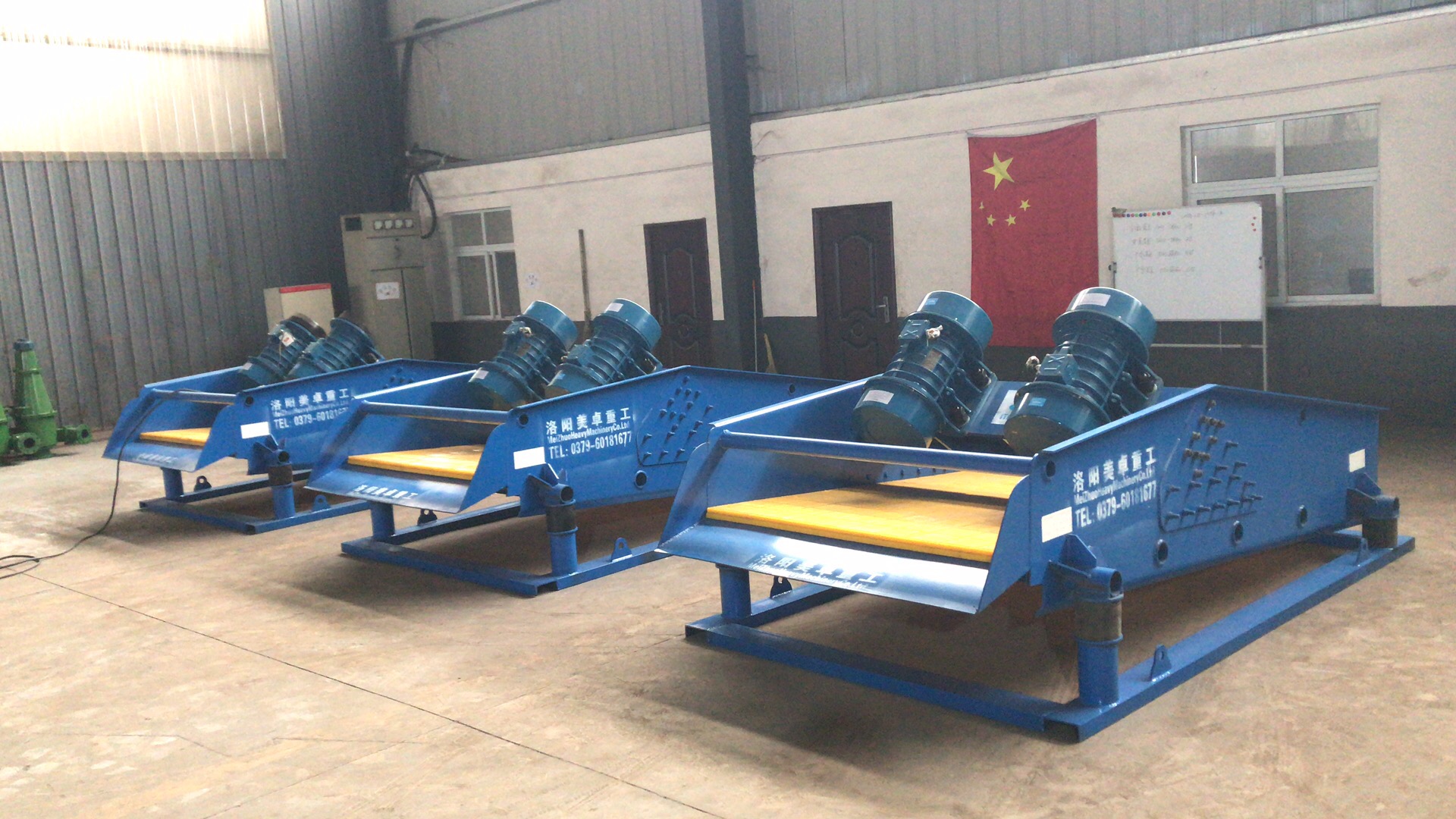

High Frequency Sand Dewatering Screen , Vibratory Screen Separator For Cement Plant
TS dewatering screen is mainly used in mining, construction for coarse or fine sand dehydrate processing. With the advantages of simple structure and easy maintenance, it becomes a hot sell in our market.
Dewater vibrating screen adopts dual-motor self-synchronization technology. The motors coordinate with universal eccentric and adjustable amplitude vibrator. When the two motors start to work, the vibrators move reversely at the same time. The centrifugal force is generated by the eccentric blocks superpose themselves and form a single direction vibration. The high frequency vibration drives the screen move back and forth in line repeatedly. So the sand will be dehydrated and filtered.
Model | Power (Kw) | Capacity (t/h) | Feed size (mm) | Screen size W*L (mm) | Screen area (m²) | Screen Material | Weight (kg) | Dimension L*W*H (mm) |
TS0918 | 0.75*2 | 10-30 | ≤10 | 900*1800 | 1.6 | PU | 535 | 1885*1307*1133 |
TS1224 | 2.2*2 | 40-60 | ≤10 | 1200*2400 | 2.88 | PU | 1080 | 2515*1607*1399 |
TS1530 | 3*2 | 80-100 | ≤10 | 1500*3000 | 4.5 | PU | 1550 | 3083*1907*1484 |
TS1840 | 4*2 | 100-140 | ≤10 | 1800*4000 | 7.2 | PU | 3100 | 4116*2381*1900 |
TS1842 | 4*2 | 100-150 | ≤10 | 1800*4200 | 7.56 | PU | 3200 | 4316*2381*1976 |
TS1845 | 4*2 | 100-180 | ≤10 | 1800*4500 | 8.1 | PU | 3400 | 4900*2380*2050 |
TS2445 | 7.5*2 | 180-200 | ≤10 | 2400*4500 | 10.8 | PU | 4651 | 4616*3085*2248 |
1. Advanced structure, light weight, high dehydrating ratio with new
type vibrating motors.
2. Simple structure, easy maintenance.
3. Cross beam and screen body connect with high strength bolts, no
welding and easy to remove and maintenance.
4. Polyurethane screen (PU) high screening ratio, big capacity,long
service life and no blocking.
5. Widely used, less replacement parts.
We are the professional sand washing machine manufacturer in China.
