Luoyang meizhuo Heavy Industry Machinery Co., Ltd. With new, green and sustainable development as the service concept, we focus on the manufacture of environmentally friendly mining machinery and
6 Years
| Ask Lasest Price | |
| Brand Name : | MZZG |
| Price : | Negotiation |
| Delivery Time : | 35 work days |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 10 set 15 set per month |
| Model Number : | TS1530 |
Smooth Running Material Screening Equipment 308.3*190.7*148.4cm Dimension Low Noise
Working principle
Sand dewatering screen adopts dual-motor self-synchronization
technology. The motors coordinate with universal eccentric and
adjustable amplitude vibrator. When the two motors start to work,
the vibrators move reversely at the same time. The centrifugal
force is generated by the eccentric blocks superpose themselves and
form a single direction vibration. The high frequency vibration
drives the screen move back and forth in line repeatedly. So the
sand will be dehydrated and filtered.
Product details
| Model | TS1530 |
| Capacity | 80-100TPH |
| Mesh size | 100 mesh |
| Screen Mesh | PU |
| Surface treatment | self cleaning |
| Usage | ore material dewater |
| Color | Blue |
| Motor | 2 Vibrating Motors |
| Layer(s) | 1-2 Layers |
| Noise | smooth |
| Product Keywords | Wet silica sand dewatering sieve machine customized color from sand wash plant |
Application
TS dewatering screen is mainly used in mining, construction for
coarse or fine sand dehydrate processing. With the advantages of
simple structure and easy maintenance, it becomes a hot sell in our
market.
Tech specification
| Model | Power (Kw) | Capacity(t/h) | Feed size (mm) | Screen size W*L (mm) | Screen area (m²) | Screen Material | Weight (kg) | Dimension L*W*H (mm) |
| TS0918 | 0.75*2 | 10-30 | ≤10 | 900*1800 | 1.6 | PU | 535 | 1885*1307*1133 |
| TS1224 | 2.2*2 | 40-60 | ≤10 | 1200*2400 | 2.88 | PU | 1080 | 2515*1607*1399 |
| TS1530 | 3*2 | 80-100 | ≤10 | 1500*3000 | 4.5 | PU | 1550 | 3083*1907*1484 |
| TS1840 | 4*2 | 100-140 | ≤10 | 1800*4000 | 7.2 | PU | 3100 | 4116*2381*1900 |
| TS1842 | 4*2 | 100-150 | ≤10 | 1800*4200 | 7.56 | PU | 3200 | 4316*2381*1976 |
| TS1845 | 4*2 | 100-180 | ≤10 | 1800*4500 | 8.1 | PU | 3400 | 4900*2380*2050 |

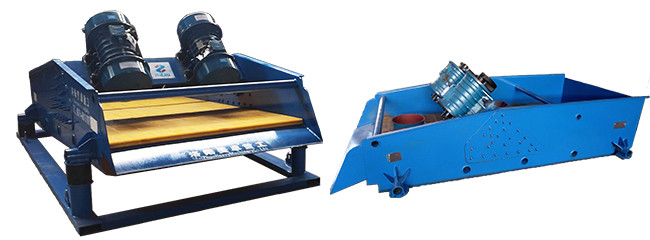

Structure
|
|
