Professional Spiral Sand Washing Machine Polyurethane Material Cover Powerful

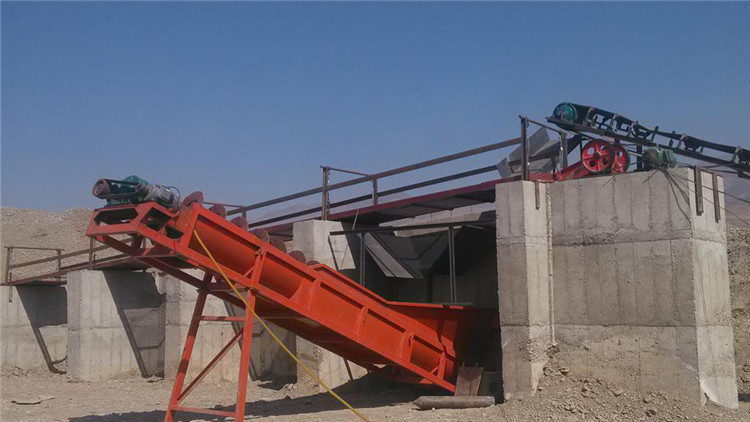

Products real shot:
Double spiral sand washing machine is a kind of sand washing equipment, mainly by the tub, gearbox, motor, central shaft, screw blade, support composition, reasonable structure. It is widely used for washing, grading, cleaning, and fine and coarse grained materials washing in highway, hydropower and construction industries, especially for building and road construction sand and gravel.
Working principle:
When the machine is working, the material goes into the input part. It will push the material to the output through the machine. Surface dust and impurity are removed when the material from the input part to the output part is pushed, mixed and washed. The final product goes out through the discharge outlet and the mud and impurity will go out through overflow part.
Structure:
Tech specification:
| Model | Diameter of screw (mm) | Screw shaft length(mm) | Power (kw) | Spiral mandrel mize(mm) | Spiral weir plate height(mm) | Spiral blade size (mm) | Capacity (t/h) | Weight (t) | Dimension (mm) (L×W×H) |
| 2LSX920 | 920*2 | 6800 | 11*2 | ∅273×20 | 1418 | ∅800×∅273×10 | 150-200 | 9.125 | 8700*2100*3500 |
| 2LSX1120 | 1120*2 | 6800 | 15*2 | ∅325×20 | 1618 | ∅1040×∅325×10 | 200-250 | 12 | 9380*2400*3800 |
|
|
