Double Wheel Sand Washing Machine With Dehydration Screen Energy Saving
About the double wheels sand washing machine
Double wheel sand washing machine is a new type washer with multifunctional, generally used for cleaning, dewatering, and recycling the stone powder, mountain sand and other high mud content materials. This equipment connects double wheel washer into one set, also includes the high frequency dewatering screen part and fines sand recycle unit. Final sand output within 95% formation, high grade of coarse and fine.
Structure
Working principle
When the equipment is running, the material that has been treated
in the previous stage enters the first water storage tank. The
first grinding wheel starts to rotate through the motor and the
speed reducer, and the material in the first water storage tank is
picked up from the water and passed through the washing wheel. The
mesh leaks the water and the material below the mesh size, and
transfers the qualified material to the second storage tank. During
the rotation of the grinding wheel, the material is in full contact
with the water, and the water is used to remove the impurities on
the surface of the material. Make the material cleaner.
Then the second washing wheel repeats the process of the first
washing wheel to clean the material twice. The cleaned material

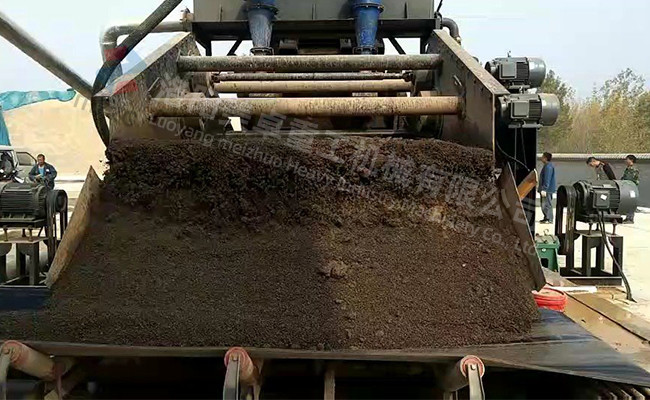

enters the dewatering device, and the large amount of water is
removed by the vibration of the dewatering device, so that the
material is more convenient to store and transport. For the
material leaked in the water storage tank, the water pump enters
the water pump at the end of the machine, and is pumped to the
separation and recovery device for concentration and recovery.
After concentration, the qualified materials are returned to the
dewatering device for dehydration and collection, and the excess
wastewater Impurities are discharged into the return tank.
| Model | Capacity (t/h) | Water Consumption (m³/h) | Wheel diameter (mm) | Dewater screen size(mm) | Power (Kw) | Weight (kg) | Dimension L*W*H(mm) |
| 2MZ26-12 | 30-50 | 80-100 | φ2600*1100 | TS1224 | 37.4 | 6230 | 9580*5310*2740 |
| 2MZ30-15 | 70-100 | 100-120 | φ3000*1800 | TS1530 | 58 | 12000 | 11900*7220*3640 |
| 2MZ36-18 | 120-150 | 160-200 | φ3600*2000 | TS1845 | 75 | 24000 | 13610*6400*3670 |
Features
The sand was washed twice, get cleaner sand output. Full-featured, efficient sand cleaning, dewatering and fine sand recovery. Integrated design, high-yield and high-efficiency, compact structure and low energy consumption.
