50 TPH Natural Sand Screw Wash Plant Low Power Consumption Energy Saving

Luoyang meizhuo Heavy Industry Machinery Co., Ltd
Contact Now
    Buy cheap 50 TPH Natural Sand Screw Wash Plant Low Power Consumption Energy Saving from wholesalers

    Buy cheap 50 TPH Natural Sand Screw Wash Plant Low Power Consumption Energy Saving from wholesalers
    • Buy cheap 50 TPH Natural Sand Screw Wash Plant Low Power Consumption Energy Saving from wholesalers

    50 TPH Natural Sand Screw Wash Plant Low Power Consumption Energy Saving

    Ask Lasest Price
    Brand Name : MZZG
    Supply Ability : 10 set 15 set per month
    Price : Negotiation
    Delivery Time : 35 work days
    Payment Terms : L/C, T/T
    Model Number : XSD2610
    • Product Details
    • Company Profile

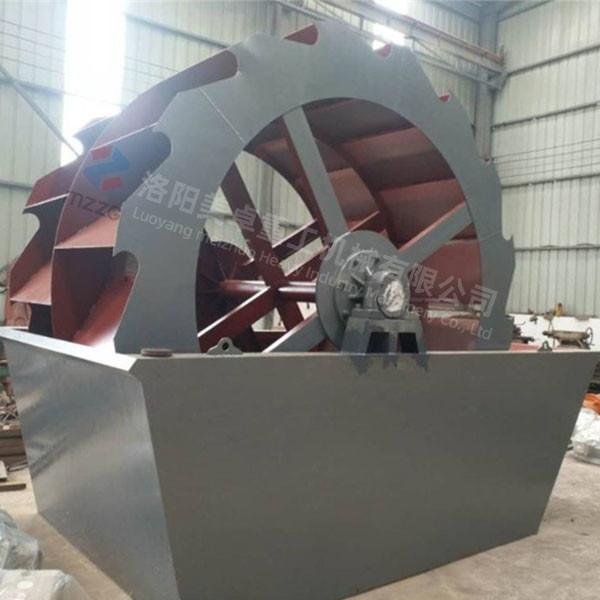

    50 TPH Natural Sand Screw Wash Plant Low Power Consumption Energy Saving

    50 TPH Natural Sand Screw Wash Plant Low Power Consumption Energy Saving


    Working Princle:

    1. When the machine works, the motor drives the impeller run slowly after being decelerated by v-belt, reducer and gear.

    2. The sand enters the wash trough through feeding tank, rolls pushed by the impeller, and rubs mutually to remove the impurities covering on the surface of the sand, it breaks the water vapour which favors dewatering;

    3. At the same time, the strong water flow takes the impurities away, and discharged from the overfall.

    4. The clean sand is taken away by the impellers, when rising, the water drops down to the wash trough from the nets, this can both dewater the sand and save water.

    5. Finally, the sand is poured into the discharge chute and finished cleaning.

    50 TPH Natural Sand Screw Wash Plant Low Power Consumption Energy Saving


    Application:
    Bucket sand washer is a kind of wheel washing equipment, and can clean and separate the dust and powder from the sand. Sand washing machine are mainly used in building site, gravel plant, concrete dam building site of hydro power station, etc..

    Structure:

    50 TPH Natural Sand Screw Wash Plant Low Power Consumption Energy Saving


    Tech specification:

    ModelWheel Size (mm)Max feed size (mm)

    Power

    (KW)

    Weight (t)Capacity (t/h)Overall dimension (mm)
    XSD2610Φ2600×1000105.5/7.52.620-503255×1982×2690
    XSD2816Φ2800×16001011/154.230-603540×3000×2880
    XSD3016Φ3000×16001015/205.550-1003845×3000×3080
    XSD3220Φ3000×20001015/208.360-1504150×3500×3300
    XSD3620Φ3000×20001015/209.880-1504500×3500×3700
