Luoyang meizhuo Heavy Industry Machinery Co., Ltd. With new, green and sustainable development as the service concept, we focus on the manufacture of environmentally friendly mining machinery and
6 Years
| Ask Lasest Price | |
| Brand Name : | MZZG |
| Supply Ability : | 10 set 15 set per month |
| Price : | Negotiation |
| Delivery Time : | 35 work days |
| Payment Terms : | L/C, T/T |
| Model Number : | XSD2610 |

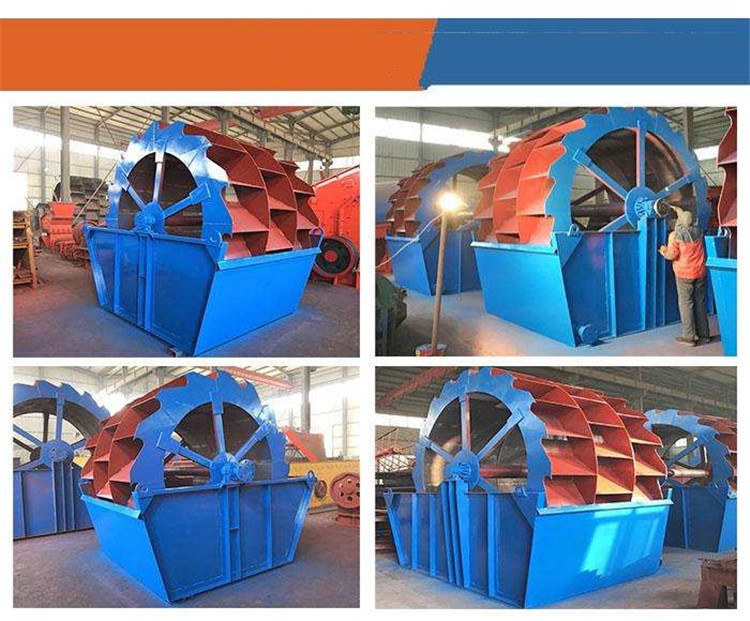

Construction Materials Bucket Sand Washer International Standard 30 TPH
About the XSD series bucket sand washer
Bucket sand washer is mainly used for removing impurities in sand products.It widely used in the construction site,washing of the material sand quarry,sand factory,mining,building materials,hydropower station,chenical industry,transportaion,water conservancy and hydropower,concrete mixing station.
Working Principle
The electric motor runs slowly with the wheel after decelerated by
the belt, decelerator and gears wheel. The sand and stone flow into
washing launder from feeding launder, rolls with the wheel, and
grinds each other. The impurity covering the sand is washing away.
At the same time, add more water, the strong water flow will take
away waste and some low-weight wastes from washing launder.
Through the above process, the washing function is finished.
Tech specification
| Model | Wheel Size (mm) | Max feed size (mm) | Power (KW) | Weight (t) | Capacity (t/h) | Overall dimension (mm) |
| XSD2610 | Φ2600×1000 | 10 | 5.5/7.5 | 2.6 | 20-50 | 3255×1982×2690 |
| XSD2816 | Φ2800×1600 | 10 | 11/15 | 4.2 | 30-60 | 3540×3000×2880 |
| XSD3016 | Φ3000×1600 | 10 | 15/20 | 5.5 | 50-100 | 3845×3000×3080 |
| XSD3220 | Φ3000×2000 | 10 | 15/20 | 8.3 | 60-150 | 4150×3500×3300 |
| XSD3620 | Φ3000×2000 | 10 | 15/20 | 9.8 | 80-150 | 4500×3500×3700 |

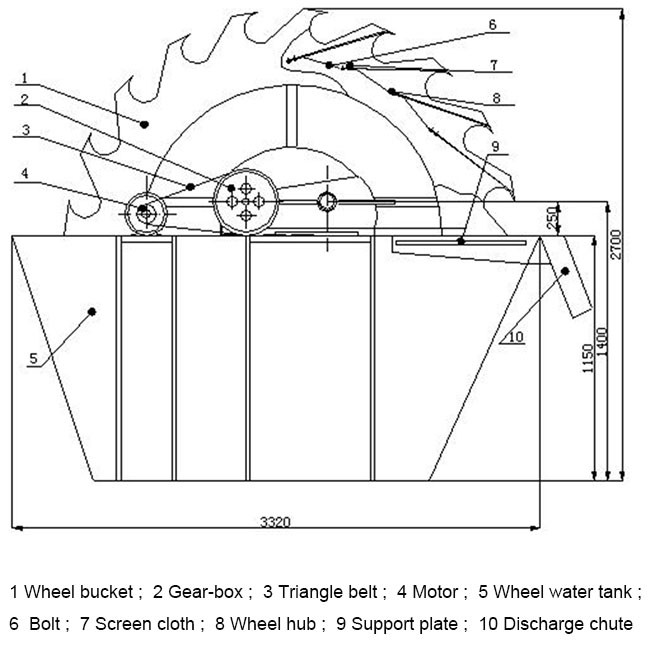

Structure
|
|
