    Single Spray Sand Recycling Machine 20 KW Prevent Material Accumulation

    Ask Lasest Price
    Brand Name : MZZG
    Model Number : MZ100
    Price : Negotiation
    Delivery Time : 35 work days
    Payment Terms : L/C, T/T
    Supply Ability : 10 set 15 set per month
    • Product Details
    • Company Profile

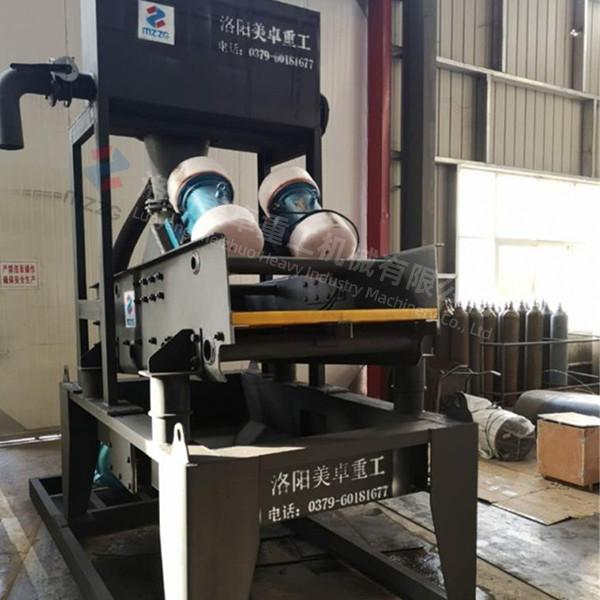

    Single Spray Sand Recycling Machine 20 KW Prevent Material Accumulation

    Single Spray Sand Recycling Machine 20 KW Prevent Material Accumulation


    Product information

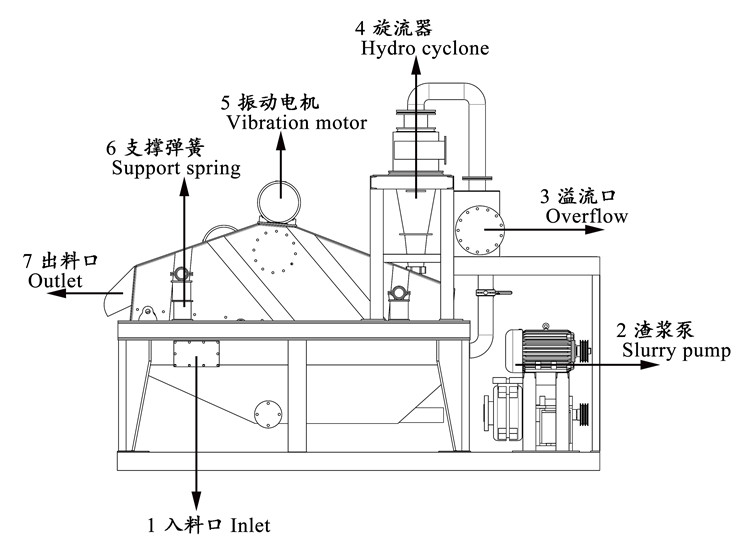

    The overflow mouth before washing sand machine, aggregate recycling machines into the mouth, recycling machine aggregate the bottom and the slurry pump connection, slurry pump, pumping slurry into the hydrocyclone and rated filling pressure, through high-speed centrifugal force cyclone separating the sand in the pulp, at the same time after the sand concentration up to 60-70% through heavy spit into linear vibrating sieve dehydration screen surface, under the action of vibration sieve machine, the moisture in the sand removal. Fine sand in the sieve machine screen surface do linear jump movement, discharge from the outlet conveyor belt, so as to achieve the purpose of fine sand in the pulp recovery, dehydration, dry discharge.

    Single Spray Sand Recycling Machine 20 KW Prevent Material Accumulation

    Introduction

    Sand recycling machine is a device for extracting solid sand from slurry material, also called fine sand extractor. The machine is mainly used for the recovery and dewatering fine sand in the waste water discharged by the the wheel sand washing machine or the spiral sand washing machine. On the one hand, the fine sand extracted to obtain a better grade sand output mixed coarse and fine, on the other hand, it can solve the serious accumulation of sedimentation tank after washing sand.

    Single Spray Sand Recycling Machine 20 KW Prevent Material Accumulation

    Features
    The feed box distributed, to prevent material accumulation, ensure the effective dewater area of the material. Cyclone shell carbon steel, polyurethane liner, hardness 95, separation particle size 50-200um. The cyclone bracket prevents swinging irregularly, ensuring the recovery efficiency.

    Tech specifications

    Model
    Water Consumption
    (m³/h)
    Screen size
    Width*Length
    (mm)
    Cyclone Model /NO.(mm)
    Power
    (Kw)
    Weight
    (kg)
    Dimension
    L*W*H
    (mm)
    MZ6060900*180025012.515003680*1170*2400
    MZ8080900*180030016.516103680*1170*2400
    MZ100100900*18003502017803680*1170*2400
    MZ1201201200*2400250/22622503680*1360*2500
    MZ1601601200*2400300/23426503680*1360*2500
    MZ2002001200*2400350/24129804280*1880*2600
    MZ2402401500*3000300/34336804280*1880*2600
    MZ3003001500*3000350/34337904600*1980*2612
    MZ3203201500*3000300/46056904900*2380*2612
    MZ4004001500*3000350/46057804600*1980*2612

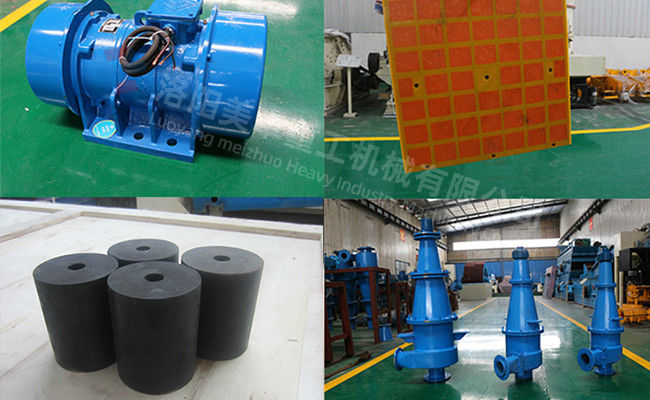

    Spare parts
