Linear Gravel Screen , Coal Vibrating Screen Low Power Consumption Stable Performance

Working principle

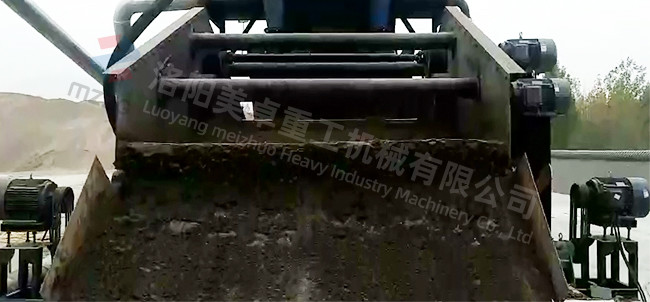

This machine uses vibration motors with exactly the same performance parameters as the excitation source. When two vibration motors run at the same angular speed in the opposite direction, the inertial force generated by their eccentric blocks is repeatedly superimposed or cancelled at a fixed phase, resulting in huge The exciting force drives the screen box to make periodic reciprocating motion along the linear trajectory, so that the incoming material on the screen will gradually jump from the feed to the output. During the beating process, the part (water) smaller than the screen hole will fall through the screen hole. The remaining part is discharged by the discharge to achieve the purpose of screening and dehydration.

Structure

Introduction

In terms of productivity, the dehydrated screen has the capacity more than 150 t/h. About configuration, the dehydrated screen is driven by the exciter, ordinary motor installed outside the screen frame to provide power, more exciting and more stable.
For work timeliness, dehydrated screen suitable for 24 hours of non-stop work. In addition, dehydrated screen set 45 degrees at the feeding plate, also add polyurethane, to pre-dewater the material and let material travel on screen surface for long distance, effectively increasing actual dewatering area, and get the lower water content of final output material.

Tech specifications

Features
