Dewatering Sand Recycling System , Sand Collecting System High Processing Capacity

Luoyang meizhuo Heavy Industry Machinery Co., Ltd
Contact Now
    Buy cheap Dewatering Sand Recycling System , Sand Collecting System High Processing Capacity from wholesalers

    Buy cheap Dewatering Sand Recycling System , Sand Collecting System High Processing Capacity from wholesalers
    • Buy cheap Dewatering Sand Recycling System , Sand Collecting System High Processing Capacity from wholesalers

    Dewatering Sand Recycling System , Sand Collecting System High Processing Capacity

    Ask Lasest Price
    Brand Name : MZZG
    Supply Ability : 10 set 15 set per month
    Price : Negotiation
    Delivery Time : 35 work days
    Payment Terms : L/C, T/T
    Model Number : MZ15-65
    • Product Details
    • Company Profile

    Dewatering Sand Recycling System , Sand Collecting System High Processing Capacity

    Dewatering Sand Recycling System , Sand Collecting System High Processing Capacity

    Working principle
    The finished material of the sand washing machine directly enters the dewatering screen for dehydration. The mud water discharged from the sand washing machine enters the equipment cleaning tank, and is pumped to the high pressure separator through the bottom vacuum high pressure pump for classification and concentration. The sand mouth enters the dehydration, and other waste water, mud, powder, impurities, etc. are discharged into the return water tank through the overflow port of the high pressure separator.


    Structure

    Dewatering Sand Recycling System , Sand Collecting System High Processing Capacity

    Main points
    1. Reduce the runoff amount of the fine material;
    2. Solve the problem of end product fineness stone powder content too less.
    3. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.

    Tech specification

    Model

    Water Consumption

    (m³/h)

    Screen size W*L

    (mm)

    Cyclone Model

    /NO.(mm)

    Power

    (Kw)

    Weight

    (kg)

    Dimension

    L*W*H(mm)

    MZ09-2530-60900*180025012.514002000*1300*2900
    MZ12-3050-1201200*240030019.520442515*1580*2930
    MZ15-6580-1601500*3000300/23630003327*1880*3200
    MZ18-100150-2401800*4500250/45271644744*2500*3200
    MZ24-120200-3002400*4500300/47582004744*3200*3200
    MZ24-180300-4002400*4500300/68988004744*3200*3200

    Application

    Widely used in mud purification, artificial sand production line, hydro power station and sand aggregate system, glass raw material processing system and coarse slime recovery, and fine material recovery.

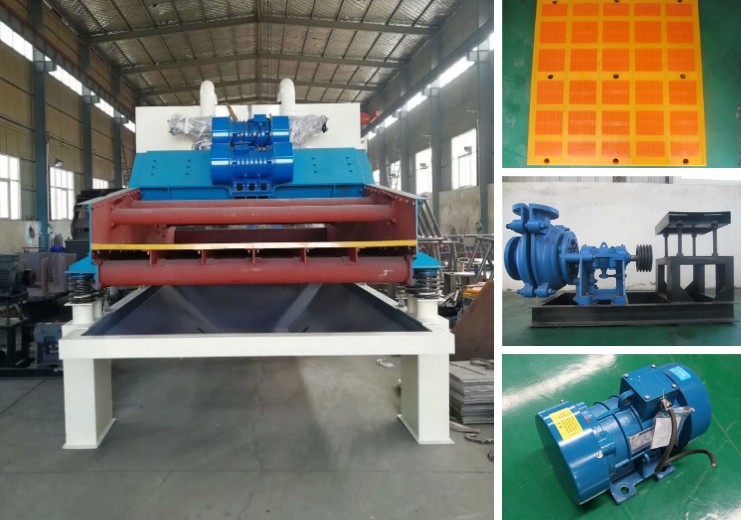

    Product Details Show

    Dewatering Sand Recycling System , Sand Collecting System High Processing Capacity
