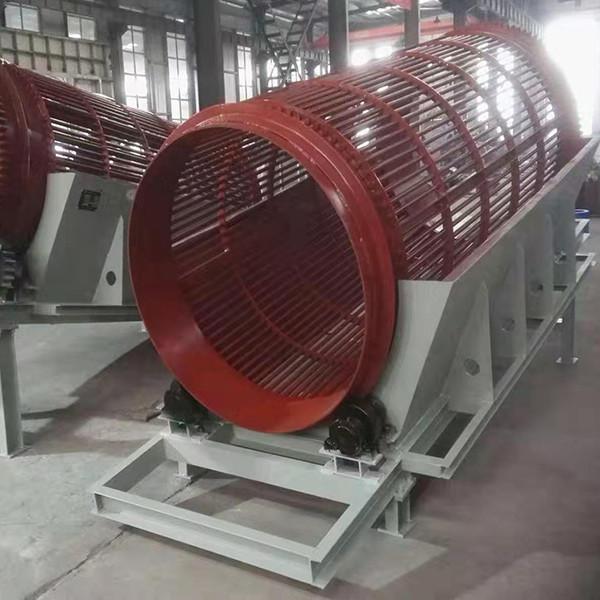

Large Output Rotary Screening Machine , Industrial Rotating Sieve Condition New
About the Rotary Screening Machine
When the Drum screen works, the motor connects the reducer and the drum device through a coupling, and drives the drum device to rotate about its axis. Drum sieve is a mechanical method. There are several side-by-side sieve bars to form sieve holes to form sieve surface. After the material is put into the roller device, the material is turned and rolled due to the tilt and rotation of the roller device. The materials are screened out one by one through different screens.
Structure
Features
Special screen is adopted, which has high screening efficiency and long service life.
The installation screen angle of the drum screen is small, and the screen holes are not easy to be blocked.
Simple structure, convenient maintenance; stable operation, low noise
The Rotary Screening Machine occupies a small space and is convenient for process layout.
Tech specifications
| Model | Capacity(m3/h) | Power(Kw) | |
| Mesh(5mm) | Mesh(30mm) | ||
| YTS1230 | 30-50 | 100 | 5.5 |
| YTS1240 | 30-50 | 120 | 5.5 |
| YTS1250 | 30-60 | 140 | 5.5 |
| YTS1530 | 50-70 | 150 | 5.5 |
| YTS1540 | 50-70 | 150 | 7.5 |
| YTS1550 | 50-100 | 180 | 11 |
| YTS1560 | 50-100 | 200 | 11 |
| YTS2040 | 100-130 | 250 | 15 |
| YTS2050 | 100-150 | 300 | 15 |
Application
Rotary Screening Machine is a new generation of sieve equipment, mainly composed of inlet and outlet, motor, gear-box, frame, roller device, etc. It can be used in chemical, coking, mining, power plant, building materials, metallurgy and other industries. The roller unit is tilted and mounted on the frame, and the outside is sealed by a sealed spacer to prevent contamination.
|
|
