Working principle

When the material enters the drum, the material on the screen surface is turned and rolled due to the inclination and rotation of the drum, so that the qualified material (the product under the screen) is discharged through the discharge port at the bottom of the rear end of the drum, and the unqualified material (the product on the screen) is discharged through the discharge port at the rear end of the drum.As the material in the roller turnover, rolling, so that the material stuck in the screen hole can be ejected, to prevent the screen hole blocked.

Introduction

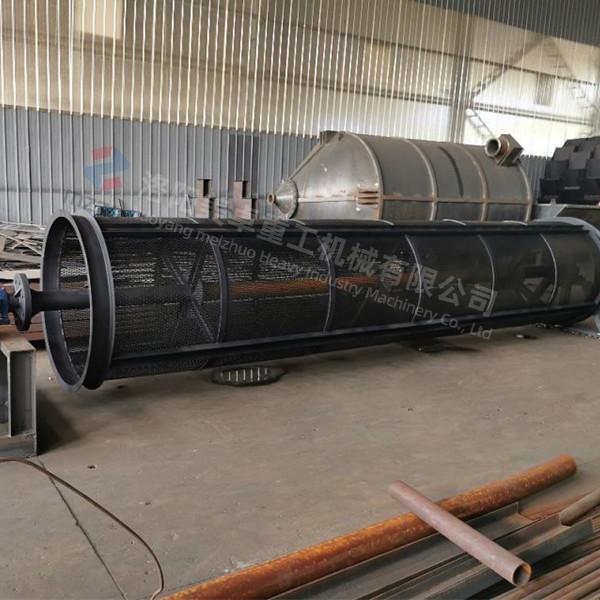

Rotary screen is a new generation of sieve equipment, mainly composed of inlet and outlet, motor, gear-box, frame, roller device, etc. It can be used in chemical, coking, mining, power plant, building materials, metallurgy and other industries. The roller unit is tilted and mounted on the frame, and the outside is sealed by a sealed spacer to prevent contamination.

Application

The materials that can be processed are mud, stone powder, sand and stone separation, lump coal, coal powder, stone in the stone yard and so on. It is widely used in the classification and separation of materials in the coal industry, chemical industry, mineral processing industry, sandstone field and other industries.

Tech specifications

Features

1. Unique design, effectively reduce vibration, and make the machine run more smoothly.
2. The vulnerable parts of the roller screen are all made of higher wear-resistant materials, and the service life of the equipment is 1.5 times longer than that of the previous equipment.
3. The special screen used has high screening efficiency and long service life.
4. The roller screen adopts computer control operation, compared with other equipment, the automatic program is high.
5. The sieve tube can be closed, which is easy to close and collect dust.
