Tailing Slurry Deep Cone Thickener , Clay Thickener Sedimentation Metal Beneficiation Plants
Introduction:
Deep cone thickener mainly used for slurry water during sand or tailings washing process, changed slurry water into clean water flowing out and supplementary sand washing water.The process capacity is about 30-200m³/h, we often use chamber of belt filter press after this thickener, to turn slurry into mud cake discharge directly, within 25%-35% water content, to reduce the pollution for environment. In essence, the thickener belongs to a new type of mud-water separation sedimentation tank, special internal structure together with different kinds of flocculant for sediment makes it widely used.
Working principle:
The solid-liquid separation equipment combined with gravity sedimentation can lift the slurry wastewater with a solid content of 2% to 10% to a concentration of 40% to 60% by gravity sedimentation. At the same time, the upper part of the tank realizes clear water overflow to achieve sewage. Purpose of purification and solid-liquid separation.
Application:
Now the deep cone thickener widely applied to dewatering to various metal and non-metal ores and the slurry solid-liquid separation in sectors like metallurgy, coals, chemicals, mine tailings and environment protection.
Tech specification:
| Model | Feed concentration | Weight (kg) | Tank diameter (mm) | Process capacity(m³/h) | Dimension L*W*H (mm) |
| WS-3600 | ≤20 | 6000 | Φ3000 | 100-120 | 3000*3000*6500 |
| WS-6700 | ≤20 | 13500 | Φ6000 | 200-250 | 6000*6000*7500 |
| WS-8700 | ≤20 | 33000 | Φ8000 | 250-350 | 8000*8000*7500 |

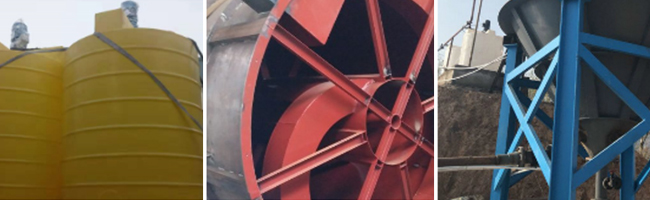

Details Show:
Structure:
|
|
