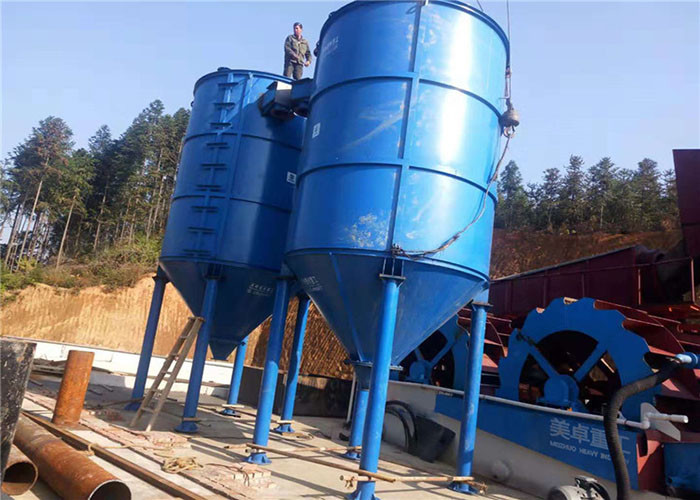

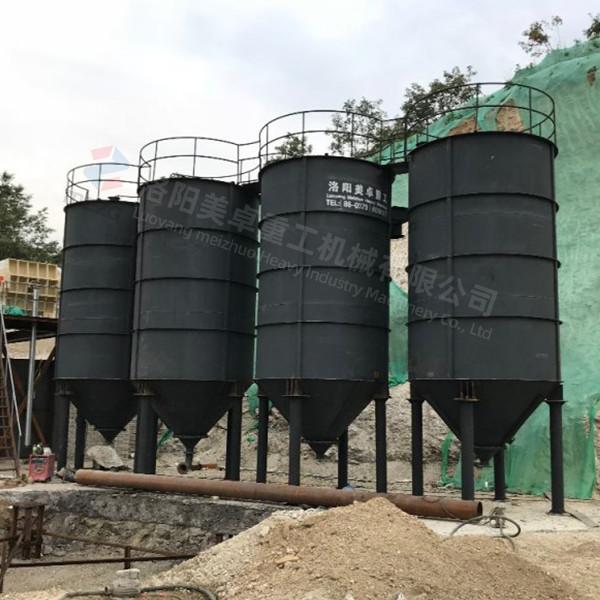

Mining sludge tailing deep cone thickener for ore concentrate

Introduction:
The solid-liquid separation equipment combined with gravity sedimentation can lift the slurry wastewater with a solid content of 2% to 10% to a concentration of 40% to 60% by gravity sedimentation. At the same time, the upper part of the tank realizes clear water overflow to achieve sewage. Purpose of purification and solid-liquid separation.

Working principle:

The waste water from the processing material enters the central feeding barrel through the material channel, and passes through a series of effects such as slow flow and flocculation, so that the thickened underflow mud is discharged from the discharge port at the bottom of the tank and enters the filter press equipment, and presses into mud cake . The upper part of the tank produces clean water (overflow clarified liquid) with high cleanliness, which is discharged from the water outlet at the top. The clean water can be recycled to achieve zero discharge of production wastewater.

Structure:

Tech specification:

Performance advantages:
1. Instead of the traditional sedimentation tank, solve the problem of sedimentation tank dredging
2. Overall closed structure, higher safety
3. Small footprint, saving land occupation
4. Recycle water, save resources and reduce pollution
5. Boiler steel as the main material of the tank body, without wearing parts, the service life can reach 10-15 years
