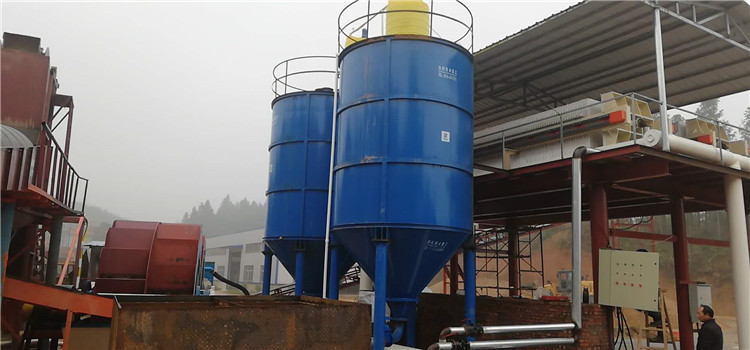

Mining Plant deep cone thickener sewage purification system with motor
Application
Now the deep cone thickener widely applied to dewatering to various metal and non-metal ores and the slurry solid-liquid separation in sectors like metallurgy, coals, chemicals, mine tailings and environment protection.
Structure
Details Show
Working principle
The waste water from the processing material enters the central
feeding barrel through the material channel, and passes through a
series of effects such as slow flow and flocculation, so that the
thickened underflow mud is discharged from the discharge port at
the bottom of the tank and enters the filter press equipment, and
presses into mud cake . The upper part of the tank produces clean
water (overflow clarified liquid) with high cleanliness, which is
discharged from the water outlet at the top. The clean water can be
recycled to achieve zero discharge of production wastewater.
Tech specification
| Model | Feed concentration | Weight (kg) | Tank diameter (mm) | Process capacity(m³/h) | Dimension L*W*H (mm) |
| WS-3600 | ≤20 | 6000 | Φ3000 | 100-120 | 3000*3000*6500 |
| WS-6700 | ≤20 | 13500 | Φ6000 | 200-250 | 6000*6000*7500 |
| WS-8700 | ≤20 | 33000 | Φ8000 | 250-350 | 8000*8000*7500 |
|
|
